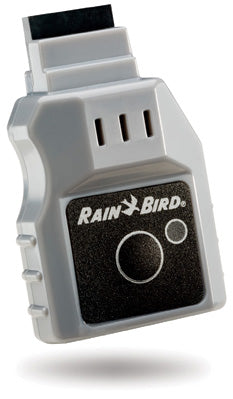

LNK WiFi Module Rain Bird

Add on WIFI module for ESP-TM and ESP-ME controllers built after November 2016.

Supported Mobile Devices

• Apple devices running iOS 8.0 or greater;
• Android devices running OS 4.4 (KitKat) or later

Wireless Frequency Bands Supported

• 2.4 GHz only

Wireless Networks Supported

• 802.11 b/g/n only

WiFi Security Modes Supported

• None, Open, WEP, WPA-TKIP, WPA-AES, WPA2-TKIP, WPA2-AES, WPA2-AES-TKIP

Communication Modes Supported

• Communication with module via module Access Point (hotspot); Communication with module via local area network; Communication with module via Rain Bird relay server

Operating Specifications

• Operating Temperature: 14° F (-10° C) to 149°F (65°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) non-condensing environment

Electrical Specifications

• 24VAC(RMS) 50/60Hz; 55mA max

Certifications

• UL, cUL, CE, CSA, FCC Part 15b, WEEE, S-Mark, IP30, IFETEL

Dimensions

• Width: 1.13 in.
• Height: 1.83 in.
• Depth: 0.48 in.
